Nano System

4 reviews

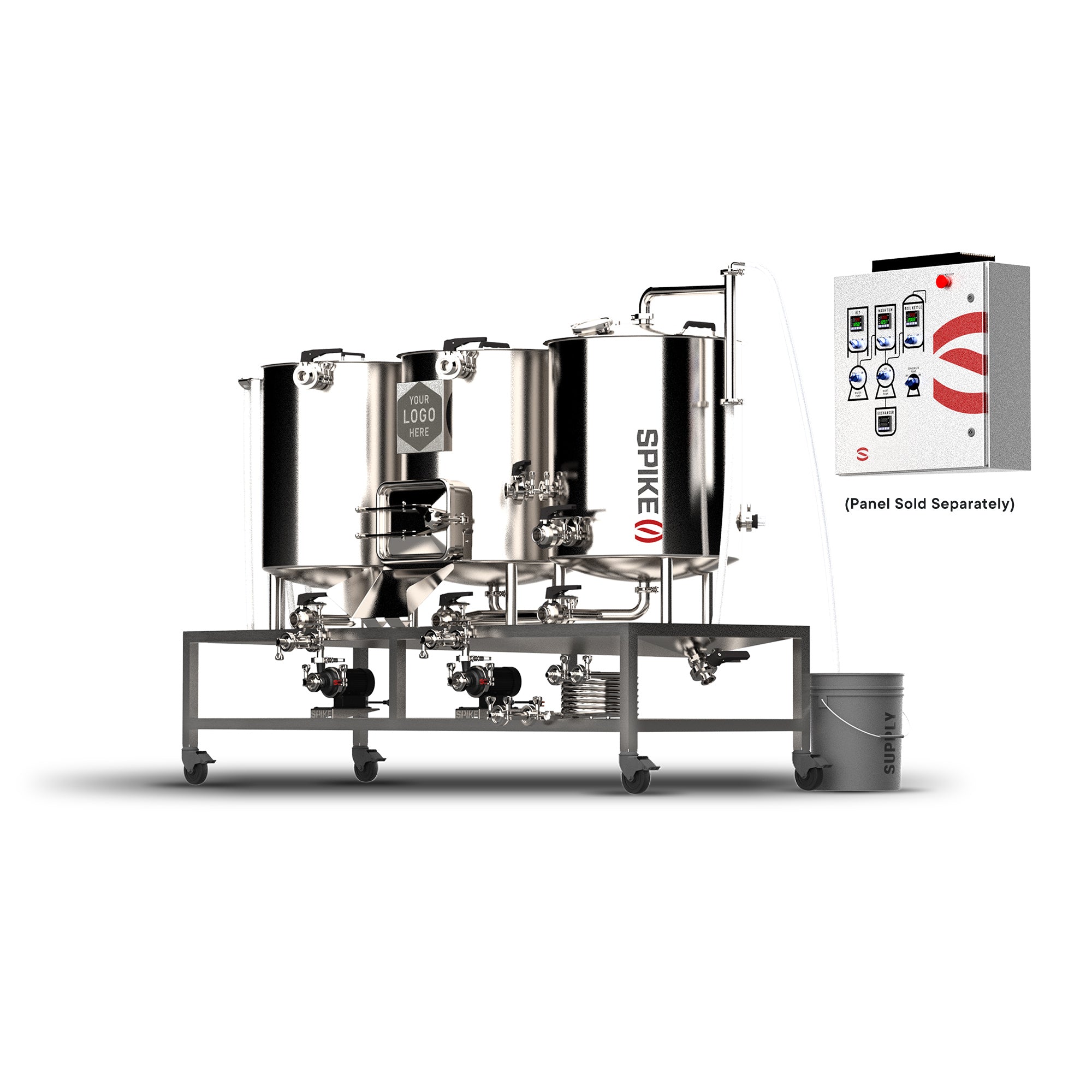

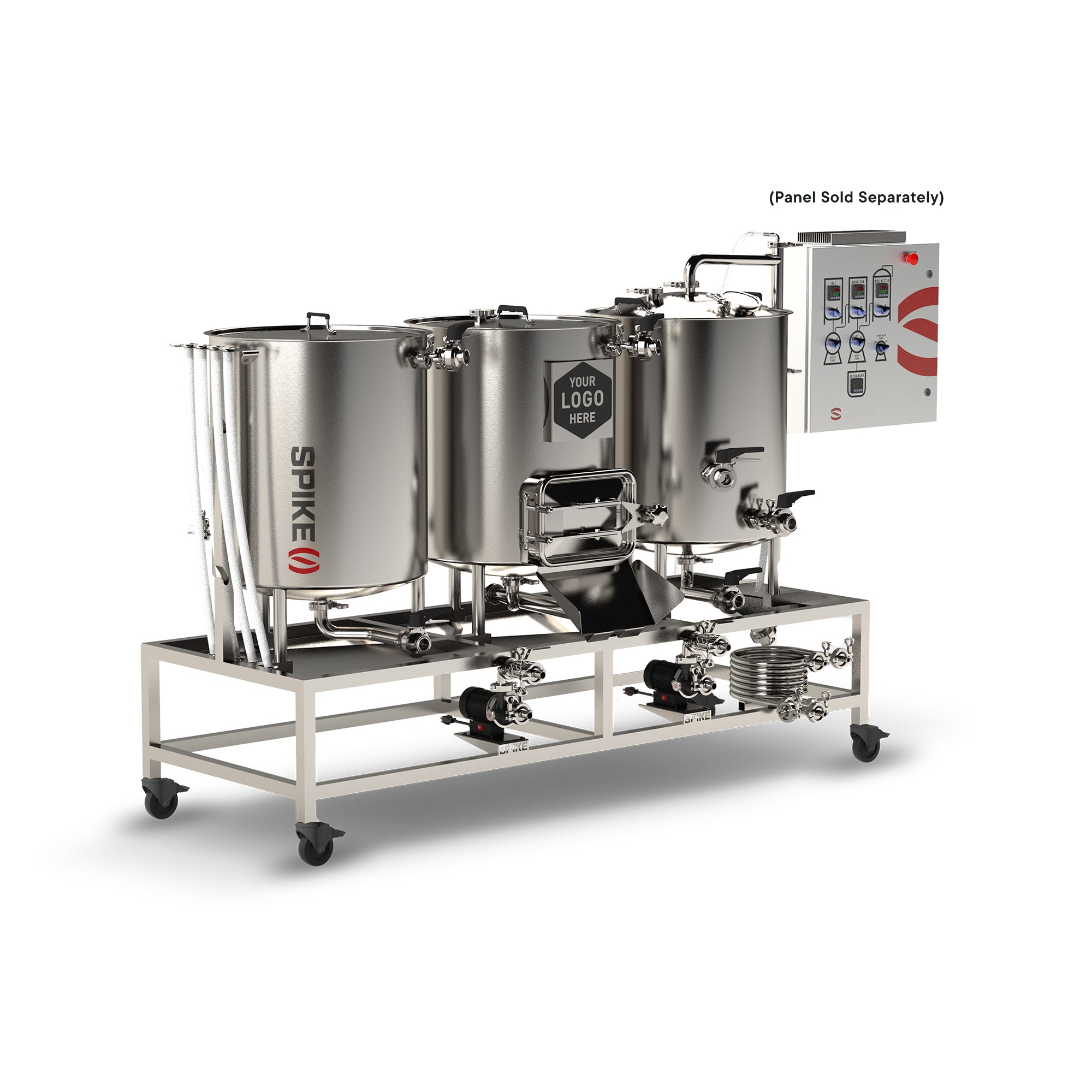

Professional-grade brewing system that can be used at home, as a pilot system or for full-scale nanobrewery production. Featuring bottom drain kettles, a full-length drip tray and a commercial grade UL approved panel, this system truly has it all.

Learn More
Estimated Total $16,500.00

Overview

The heart of the Nano system is a commercial grade UL approved panel – available in single and double-batch configurations – that provides up to 27,000 watts of heating power. The Nano’s process is intuitive, too. The absence of hard piping and a complex valve tree means the system is both easy to clean and easy to operate. Plus, 90% of the Nano’s parts are locally sourced and manufactured in the U.S. We’ll even personalize the system by featuring your logo on a custom name plate.

Investing in your Nano also includes access to a full-service support team, wholly immersed in the system’s features and functions. If you’d like to ask a question, please contact our Customer Experience team here.

Features:

  • Steam Condensing Lid
  • Capable of both ½ barrel and 1-barrel batches
  • 55 Gallon HLT, MT and BK
  • UL Rated Electrical Panel
    • Controls heating elements in each kettle
    • Controls pumps
    • Controls condensing lid
    • Hard-wired to your breaker box
  • (2) 6000w tri-clamp integrated ULWD heating elements in BK and HLT
  • (1) 3000w tri-clamp integrated ULWD heating elements in MT
  • All valves, pickup tubes, false bottom, manway door, etc are included
  • FDA approved food grade, silicone tubing and quick connecting fittings
  • (2) Food grade Spike Flow brew pumps, stainless steel heads
  • A larger Spike Counterflow Wort Chiller included

Shipping

  • All Nano Systems will ship freight, free of charge.

Need A Replacement Part?

Head to our replacement part page for help.

Have more questions?

Head over to our FAQ page for quick answers!

Reviews

Customer Reviews
5.0 Based on 4 Reviews
5 ★
100%
4
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Customer Photos
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
D
08/05/2021
David
United States United States

Ideal for Innovation

The Spike Nano has been an ideal solution to test recipes on a small scale and then be able to ramp up production to a 15BBL. The Spike team was great to work with to get the system ordered to our specifications allowing us to start brewing when we first opened Twin Span Brewing 1 year ago. We have had a few issues with the system and the Spike team is available and engaged in resolution... can't ask for anything more. Appreciate the support.

SPIKE Nano System ReviewSPIKE Nano System Review
LB
08/03/2021
Llano B.
United States United States

Great system that fits our space perfectly!

Initially we had planned on opening a 50+ tap beer bar in a small town outside of Austin, Tx. When the build out was done, we noticed we had a little area left over that would accommodate a smaller professional brewing system. We looked at all the available systems and decided on Spike, not only for their great reputation and build quality, but also for their amazing customer support. While other manufactures would take days to reply to our emails, Spike always reply within hours at the most, but often sooner. After a year of use, we really have nothing to complain about with the system. We've made everything from 3% petite saisons to 17% imperial stouts with little to no fuss. Now if only Spike to engineer in something that would do all the cleaning work for us... ;)

SPIKE Nano System ReviewSPIKE Nano System ReviewSPIKE Nano System Review
BP
08/02/2021
Bernard P.
United States United States

The Spike Nano is the workhorse of our brewery

We have brewed over 200 batches on the Nano in the last year and a half since opening our brewery. I've never regretted our decision to go with it after looking at all options. It's well designed, high quality, and backed by amazing support.

SPIKE Nano System ReviewSPIKE Nano System Review
BV
02/11/2020
Brad V.
US US

Very Well Crafted

This is a very well crafted system and designed for ease of use. It can seem intimidating at first, but after the first brew you can see how it's just like your normal brewing setup but with tighter control over temps and automation to make the process much easier when scaled to 1BBL. The personalized logo on the front is an awesome bonus!

  • Ease of use
  • Recommendation
  • Value
SPIKE Nano System ReviewSPIKE Nano System ReviewSPIKE Nano System ReviewSPIKE Nano System Review
09/07/2021

SPIKE

Brad sent us some pictures to add to his review after a recent brew day!

90% U.S. Made

The Spike Nano is 90% locally sourced and manufactured in the U.S., with the finishing touches handcrafted in Milwaukee, WI. Spike is currently the only company making a commercial 1bbl system here in the States. True story, we checked.

Simplified Brew Day

We commonly get asked if we offer a hard piped system. The answer is simply, “No.” While the extra stainless looks cool, it has some downsides. Hard piping is more difficult to clean, more expensive and it greatly increases the skill level needed to brew. We designed the system so even a novice can brew, which frees up time for you to work on your business, not in it.

Half & Double Batch Capable

Our Nano customers love that they can brew consecutive batches in one day and make a half batch the next. Plus, having double batch capability easily turns your 1bbl brewhouse into a 2bbl for a fraction of the cost!

A Brew Day Story

Every brewer's journey starts with the passion to create. And for one college in Western Kentucky, that meant turning a passion into a profession.

Nano Brew Day

Ben (owner of Spike) and Bernard (owner of The Runaway Brewery) discuss starting a nano brewery and walk through a brew day on Runaway's Spike Nano system.

A Brew Day Story

A Brew Day Story

Watch Video
Nano Brew Day

Nano Brew Day

Watch Video
01 / 09

Bottom Drain Kettles

Bottom drain kettles have a rounded bottom with a port in the middle, which means they can be fully rinsed out without turning them upside down. This also allows for your system to be fully CIP’d (see next slide).

02 / 09

CIP Capable

Every Nano comes standard with a CIP ball, so you can easily clean your kettles without having to reach in there and scrub it out.

03 / 09

Grain Door

A common theme of the Nano is saving money and time. That’s why it’s essential to have a grain door on any commercial system. Our grain door is oversized and allows for easy removal of all your grain.

04 / 09

Steam Condensing Lid

The Steam Condensing Lid captures steam by using a misting nozzle to convert that steam back into liquid. The SCL comes standard with every Nano. No need to install an exhaust hood in your brewery, the SCL is more efficient, quieter and doesn’t require a construction crew.

05 / 09

27,000 Watts of Power

With up to 27,000 watts of available power across the entire system, the Nano is an incredible time saver. You'll have 12,000 watts in both the BK and HLT and 3,000 watts to heat the MT. When brewing commercially, time is money. More power means quicker heating, quicker Brew Days and more time for you to grow your business.

06 / 09

UL Panel

Most jurisdictions require UL electrical equipment. Not having this could cause an inspector to refuse to sign off on operating permits. Rolling the dice on a non-UL panel just isn’t worth it.

07 / 09

Custom Logo Plate

It might be Spike equipment, but it’s your brewery! On each Nano, we weld on a logo plate which we custom laser engrave with your logo for no additional charge.

08 / 09

Drip Tray

Welded to the entire length of the brew cart is a drip tray. The drip tray is angled to one side with a tri-clamp fitting to easily drain all the liquids into a bucket or floor drain. It also prevents liquid from dripping onto your pump.

09 / 09

Compact Footprint

This system can fit in even the most compact spaces. Need to move it to a different spot? No problem. Just roll it on over using the Nano cart.
