The Spike Nano System


THE NANO PRE-SALE IS NOW LIVE!

As we ramp up production of the new Spike Nano System, we are offering a limited-time pre-sale. Take advantage of this opportunity and place your deposit now to lock in one of our pre-sale systems!


The Spike Nano System

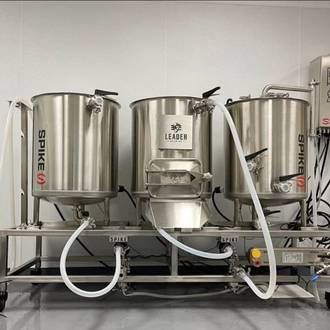

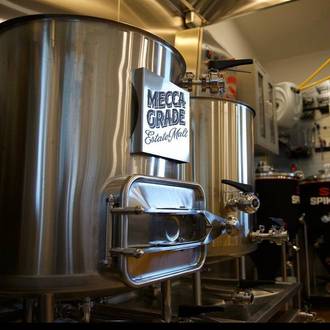

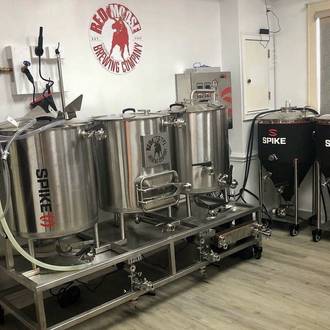

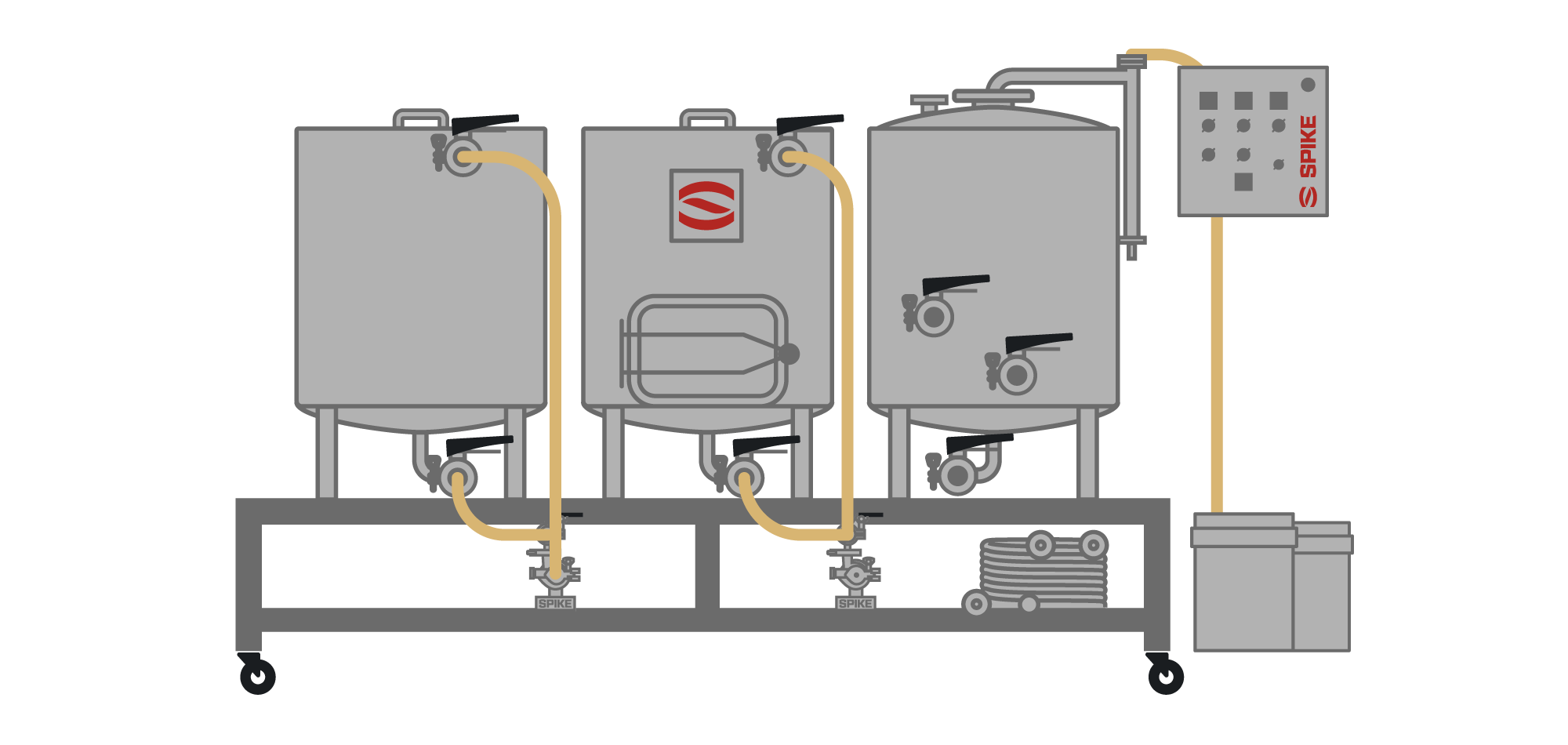

You asked and we delivered. Introducing the all-new 1bbl Spike Nano System, a professional-grade product that can be used at home, as a pilot system or for full-scale nano brewery production. Its design features bottom-draining kettles with a full-length drip tray for quick cleanup. The heart of the system is a commercial grade UL approved panel – available in single- and double-batch configurations – that provides up to 27,000w of heating power. The Nano’s process is intuitive, too; the absence of hard piping and a complex valve tree means the system is both easier to clean and easier to operate. Plus, 85% of the Nano’s parts are sourced and manufactured in the U.S. We’ll even personalize the system with your logo!

$16,000 Shipped

Double batch panel upgrade - $1,000



Questions? We’re always here to help. Investing in the Nano also includes access to a full-service support team wholly immersed in system function and available by phone, email and chat.

Contact Customer Service

  • RELIABLE

    RELIABLE

  • REPEATABLE

    REPEATABLE

  • POWERFUL

    POWERFUL

  • EFFICIENT

    EFFICIENT

Nano Specs



Electrical Requirements Nano Dimensions


Spike Nano Unveiling at Homebrew Con

Brian with Short Circuited Brewers stopped by the Spike booth at Homebrew Con to discuss the much anticipated 1bbl Spike Nano System. Watch Ben and Brian discuss the features and benefits of the brand new system!



Steam Condenser

  • Our steam condenser was built to transform steam into liquid, leaving your brewing space mold-free – no need to spend thousands more on a vent hood and installation. The cost savings continue when boiling. Once at a boil, our heating elements can be turned down to roughly 25% of total capable output and continue to hold a rolling boil. Furthermore, during testing, our team found that with our steam condenser, there was only a 5% boil-off compared to over 11% with a standard open-style boil kettle. Due to the lower boil-off rate, the additional 2+ gallons of product you get from every brew day will add up to thousands in additional revenue over the course of a year.

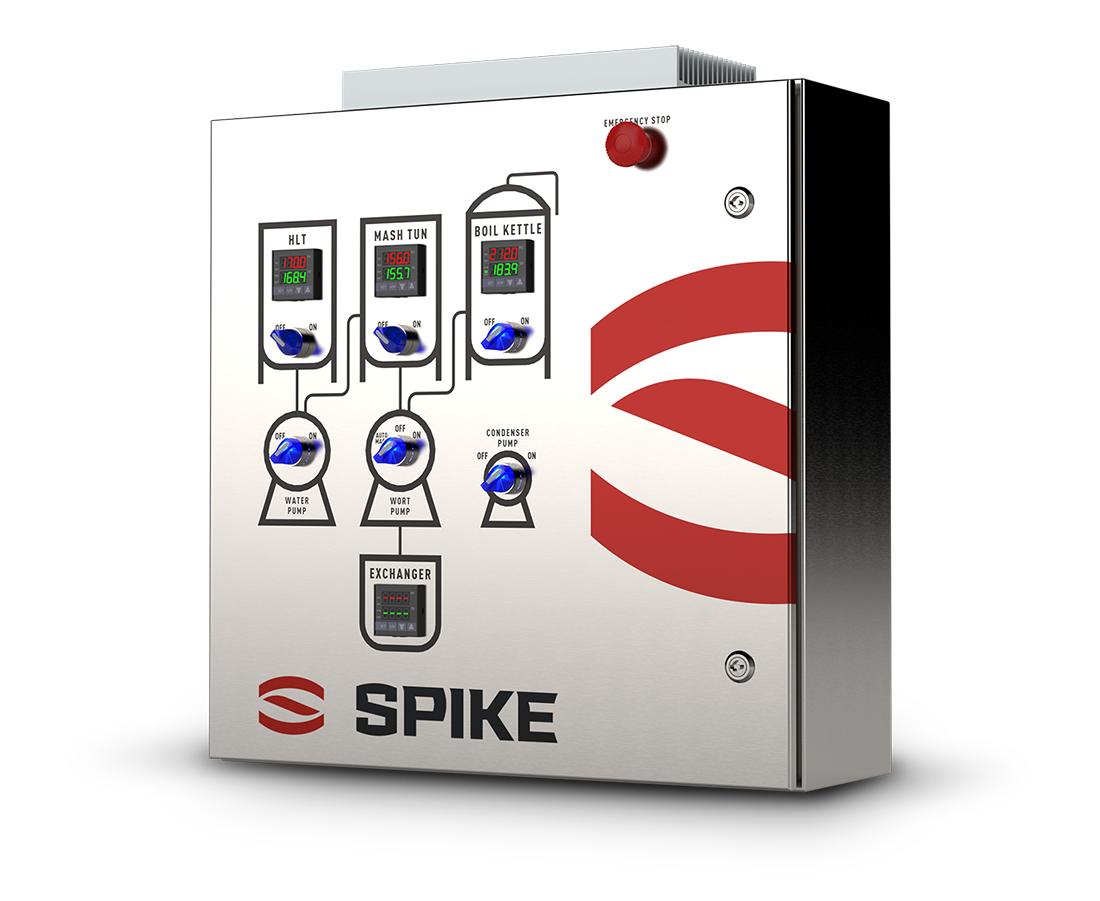

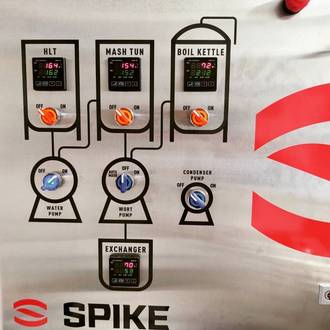

UL Panel

    • When it comes to the power source of your system, you need to trust that your engine will keep running safely and smoothly each and every brew day. We've teamed up with Electric Brewing Supply, located in Michigan, to design a fully, UL-approved electrical panel to power your Nano System. With both single and double batch options available, you can be sure to count on your electrical power source pumping out batch after batch!

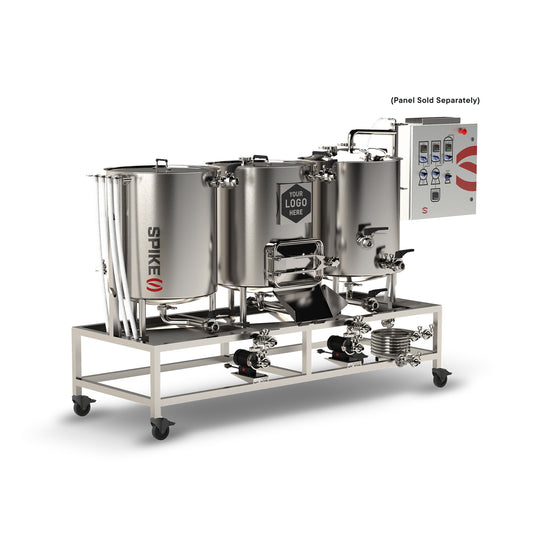

Your Custom Logo

  • Your dream, your business! Make sure your Nano System promotes your brewery proudly. Our system has a stainless plate welded to the tank, front-and-center, where you can feature your brand. You provide the logo and we’ll produce the vinyl label for no additional charge.

Drip Tray

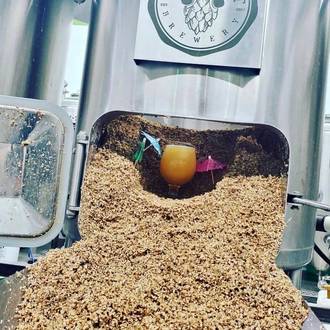

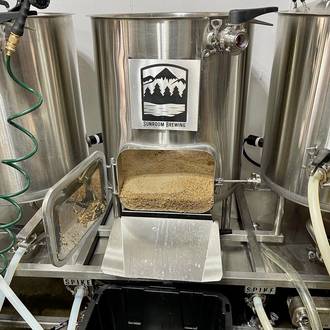

    • When it comes to 1bbl brewing systems, you won't find a more seamless and pain-free cleaning experience. Our domed, bottom-draining kettles and our handmade, cart-length drip tray that sits beneath them to catch boil-overs, drips or splashes, make clean-up a breeze. This sloped drip tray leads to a single exit point, so all liquid and waste finds a smooth route to a collection bucket or drain, protecting your pumps, chiller and floor from a potential mess. Also, our man way door and grain chute make post-mash cleanup a breeze.

27,000 Watts of Power

  • The Nano system is a time saver, with over 27,000 watts of available power across the entire system. You'll find 12,000 watts in both the BK and HLT, and with the double-batch upgrade, you can run both the BK and HLT simultaneously. In addition, our MCS (Mash Control System) helps you hold mash temperatures with ease and without fear of scorching your grain. After a variety of heating design considerations – including a calandria, which was ultimately vetoed, because it’s difficult to keep clean and doesn’t allow for half batching – we chose to move forward with industry-standard, ultra low-watt-density 316SS heating elements placed low in the kettles. This allows the brewer to brew as low as 1/2bbl (15gal) batches and makes post brew-day cleaning much easier than other proprietary heating solutions on the market.



US Manufactured






Why the Spike Nano?
